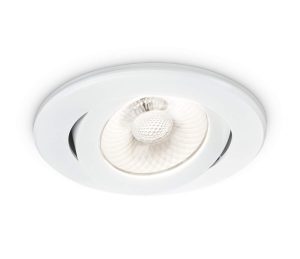

CoreLine Recessed Spot gen2 Philips
Product family information
CoreLine Recessed Spot gen2 delivers on the CoreLine promise of innovative, easy to use and high-quality luminaires. Its modular design allows “configure to fit” option that better responds to your specific needs. The range offers a wide range choice on light colour (CCT), light output, colour finish, frame types and connectivity options. The compact and lite design of CoreLine Recessed Spot gen2, always incorporating a push in connector allowing through-wiring and supporting a wide range of wire diameters/cross-sectional area, makes installation hassle-free. High quality of light, numerous connectivity options, long luminaire lifetime and high system efficacy makes CoreLine Recessed Spot gen2 an ideal accent solution for your indoor spot lighting applications.
Benefits
Diversity thanks to modular design, responding to a wide range of needsNotably easy to install and maintainCompact and light product design with high-quality materials and finishGood quality of lightGood performanceGood value for money
Features
Available in fixed or adjustable versionsCE, UKCA and ENEC certifiedWhite, black or aluminium finish650, 900 or 1200 lumens (system output)L70 at 50.000 hSystem efficacy of 88 to 107 lm/w, depending on configurationColour Rendering Index, CRI >80Standard colour deviation, SDCM < 3Correlated light colour temperature of 2,700 K, 3,000 K or 4,000 KLED Modules with sparkly lens opticsChip-on-board LED light sourceVarious interchangeable frame accessoriesAll configurations support basic insulation coverability as per IEC 60598-1.edit 8.1Various connectivity options: Phase-Cut (PSR), DALI (PSD) or Interact Pro (WIA)High-performance dimming driver (PSR) compatible with most wall-dimmers in the marketHalox® 100 concrete installation housing compatible options available
Applications
HospitalityRetailOfficesResidentialHoReCaWide range of general indoor applicationsCorridorsMeeting roomsBathrooms and toiletsBreak-out areasShelf and cabinets
Warning & Safety
The luminaire should be installed and disassembled by a qualified electrician and wired in accordance with the latest IEE electrical regulations or the national requirements, as per the product mounting instructions.
- Family Data Sheet Localized commercial leafletPDF 20.4 MB
- EcoDesign document CoreLine Recessed Spot gen2 D68mm 650-950-1200lm EcoDesignPDF 6.8 MB
