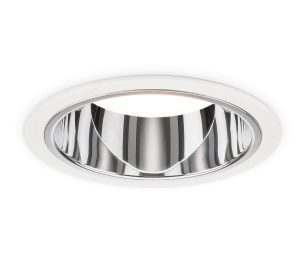

Philips LuxSpace Mini recessed
The Philips LuxSpace Mini recessed downlight : High Efficiency, Visual Comfort, and Stylish Design, part of the DN560B family, represents a pinnacle in modern indoor lighting solutions. Manufactured by Signify (the company behind Philips lighting), this product line is engineered to balance high energy efficiency, superior visual comfort, and an elegant aesthetic. With a compact design featuring a 150 mm cut-out diameter, it’s ideal for recessed installations in ceilings, providing seamless integration into various professional and commercial spaces. The LuxSpace Mini emphasizes resource optimization without sacrificing performance, delivering excellent color rendering and uniform light distribution to create inviting ambiences.
This downlight series addresses the growing demand for sustainable lighting that enhances user well-being. By combining advanced LED technology with versatile optics, it ensures gentle, natural illumination that reduces glare and eye strain, making it suitable for prolonged use in work or public environments.
Key Features
The LuxSpace Mini stands out with several innovative features that cater to both functionality and design:
- Compact Recessed Design: Specifically the mini version with a 150 mm diameter cut-out (for DN560B and DN561B models), allowing for low-height or deep recessed installations that blend effortlessly into ceilings.
- Optics Variety: Users can choose from four reflector options—high-gloss, facetted, matt, and white—to customize light distribution and aesthetics based on the space’s needs.
- High Efficacy LEDs: Achieving up to 158 lm/W, these downlights maximize light output while minimizing energy consumption.
- Visual Comfort Focus: Low Unified Glare Rating (UGR) values ranging from 19 to 22 ensure reduced glare, promoting a comfortable visual experience.
- IP Ratings: Standard IP20 for indoor use, with IP20/54 available in clear variants for added protection against dust and moisture.
- Emergency Options: Select models include ELP3h (3-hour emergency lighting) for safety in power outages.
- Control Gear: Equipped with PSU-E C (electronic power supply unit) for reliable operation, with some variants supporting dimming or advanced controls like DALI or Power over Ethernet (PoE) as seen in related models.
These features make the LuxSpace Mini versatile for creating tailored lighting scenarios, from accent lighting to general illumination.
Benefits
Investing in the LuxSpace Mini offers numerous advantages:
- Energy Savings: With efficacy up to 158 lm/W and low wattage (starting at 8.1 W), it significantly reduces electricity costs compared to traditional lighting.
- Enhanced User Comfort: The design produces a soft, natural light that minimizes eye fatigue, ideal for offices, retail, or hospitality settings where visual comfort is paramount.
- Aesthetic Appeal: Narrow rims or rimless options ensure perfect ceiling integration, maintaining a clean, modern look without compromising on style.
- Longevity and Reliability: LED technology provides a long lifespan (up to 70,000 hours in some variants), reducing maintenance needs.
- Sustainability: Compliant with EcoDesign regulations, with available Environmental Product Declarations (EPDs) highlighting low environmental impact.
- Flexibility: Multiple color temperatures (3000 K warm white and 4000 K neutral white) allow adaptation to different moods and tasks.
Overall, it provides a cost-effective, user-centric solution that aligns with green building standards.
Technical Specifications and Variants
The DN560B family includes 13 variants, offering a range of luminous fluxes, color temperatures, and additional features. Below is a summarized table of key models based on available data:
| Product Code | Description | Efficacy (lm/W) | Luminous Flux (lm) | CCT (K) | Wattage (W) | UGR | IP Rating | Special Features |
|---|---|---|---|---|---|---|---|---|
| 910505100915 | DN560B LED12S/830UE PSU-E C WH | 150 | 1200 | 3000 | 8.1 | 22 | IP20 | High-gloss reflector |
| 910505100916 | DN560B LED12S/840UE PSU-E C WH | 158 | 1250 | 4000 | 8.1 | 19 | IP20 | High-gloss reflector |
| 910505100917 | DN560B LED12S/830UE PSU-E C PG WH | 144 | 1150 | 3000 | 8.1 | 22 | IP20/54 | High-gloss, Clear |
| 910505100918 | DN560B LED12S/840UE PSU-E C PG WH | 152 | 1200 | 4000 | 8.1 | 22 | IP20/54 | High-gloss, Clear |
| 910505100919 | DN561B LED12S/830UE PSU-E C WH | 150 | 1200 | 3000 | 8.1 | 19 | IP20 | High-gloss, UGR19 |
| 910505100920 | DN561B LED12S/840UE PSU-E C WH | 158 | 1250 | 4000 | 8.1 | 19 | IP20 | High-gloss, UGR19 |
| 910505100921 | DN560B LED12S/830UE PSU-E C ELP3 WH | 100 | 1200 | 3000 | 12 | 22 | IP20 | High-gloss, ELP3h emergency |
| 910505100922 | DN560B LED12S/840UE PSU-E C ELP3 WH | 106 | 1250 | 4000 | 12 | 22 | IP20 | High-gloss, ELP3h emergency |
Additional specs from specific datasheets include:
- Power Factor: 0.9 (for efficient energy use).
- Connection: Push-in connector for easy installation.
- EU RoHS Compliant: No (noted in some variants, but overall family focuses on sustainability).
- Impact Protection: IK02 (0.20 joule).
- Dimensions: Recessed height varies, but cut-out is consistently 150 mm; overall diameter 164 mm in some models.
Higher-output variants exist, such as those with 2100 lm at 13 W.
Applications
The LuxSpace Mini is versatile for indoor professional settings:
- Offices and workspaces for task lighting with low glare.
- Retail stores to highlight products with natural color rendering.
- Hospitality areas like hotels and restaurants for ambient comfort.
- Healthcare facilities requiring reliable emergency options.
- Educational institutions for energy-efficient general illumination.
Its compact size and IP ratings make it adaptable to diverse ceiling types and environments.
Sustainability and Compliance
Sustainability is a core aspect, with EcoDesign compliance and EPDs available for models like DN560B Ref 910505100916 (663.1 kB PDF) and DN561B Ref 910505100920 (663.0 kB PDF). These documents detail environmental impacts, emphasizing recyclability and low energy use. The product’s long lifespan further reduces waste.
