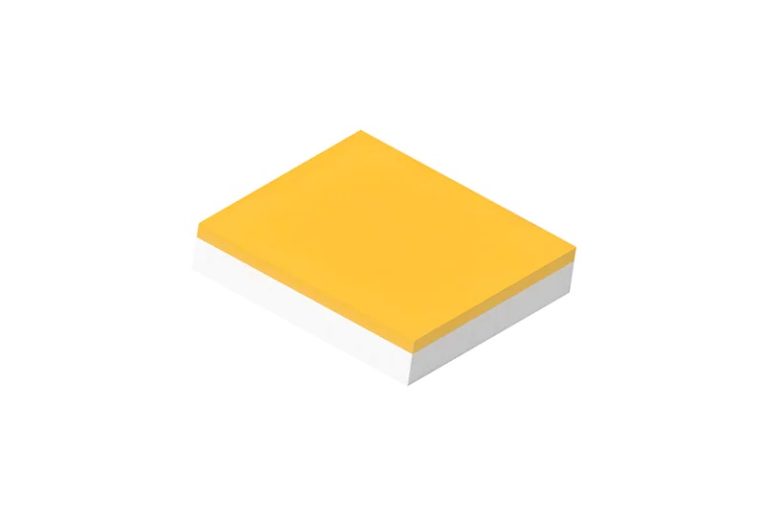

LM101B Led Chip is a part of SAMSUNG Middle Power LED Series. High efficacy, Great design flexibility & Suitable for almost all lights this Led is compact form factor for design flexibility .
- Greater freedom of design with compact package size.
- High degree of reliability with plastic free structure
- Low thermal resistance
- High efficiency providing opitimized solution
Wattage
0
Forward Voltage
0
Luminous Flux (lm) @150 mA
0
Luminous Efficacy lm /W @150 mA
0
| CCT | Part Number | BIN | MIN | MAX |
| 2700K | SCP7WT78HEL1W☆S06E | SF SG SH | 63 67 71 | 67 71 75 |
| 3000K | SCP7VT78HEL1V☆S06E | SF SG SH | 63 67 71 | 67 71 75 |
| 3500K | SCP7UT78HEL1U☆S06E | SF SG SH | 63 67 71 | 67 71 75 |
| 4000K | SCP7TT78HEL1T☆S06E | SG SH SJ | 67 71 79 | 71 75 79 |
| 5000K | SCP7RT78HEL1R☆S06E | SG SH SJ | 67 71 79 | 71 75 79 |
| 5700K | SCP7QT78HEL1Q☆S06E | SF SG SH | 63 67 71 | 67 71 75 |
| 6500K | SCP7PT78HEL1P☆S06E | SF SG SH | 63 67 71 | 67 71 75 |
| CCT | Part Number | BIN | MIN | MAX |
| 2000K | SCP8ZT78HEL1Z☆S06E | SA SB SC | 43 47 51 | 47 51 55 |
| 2200K | SCP8YT78HEL1Y☆S06E | SB SC SD | 47 51 55 | 51 55 59 |
| 2700K | SCP8WT78HEL1W☆S06E | SE SF SG | 59 63 67 | 63 67 71 |
| 3000K | SCP8VT78HEL1V☆S06E | SE SF SG | 59 63 67 | 63 67 71 |
| 3500K | SCP8UT78HEL1U☆S06E | SF SG SH | 63 67 71 | 67 71 75 |
| 4000K | SCP8TT78HEL1T☆S06E | SF SG SH | 63 67 71 | 67 71 75 |
| 5000K | SCP8RT78HEL1R☆S06E | SF SG SH | 63 67 71 | 67 71 75 |
| 5700K | SCP8QT78HEL1Q☆S06E | SF SG SH | 63 67 71 | 67 71 75 |
| 6500K | SCP8PT78HEL1P☆S06E | SE SF SG | 59 63 67 | 63 67 71 |
| CCT | Part Number | BIN | MIN | MAX |
| 2700K | SCP9WT78HEL1W☆S06E | SB SC SD | 47 51 55 | 51 55 59 |
| 3000K | SCP9VT78HEL1V☆S06E | SB SC SD | 47 51 55 | 51 55 59 |
| 3500K | SCP9UT78HEL1U☆S06E | SB SC SD | 47 51 55 | 51 55 59 |
| 4000K | SCP9TT78HEL1T☆S06E | SC SD SE | 51 55 59 | 55 59 63 |
| 5000K | SCP9RT78HEL1R☆S06E | SC SD SE | 51 55 59 | 55 59 63 |
