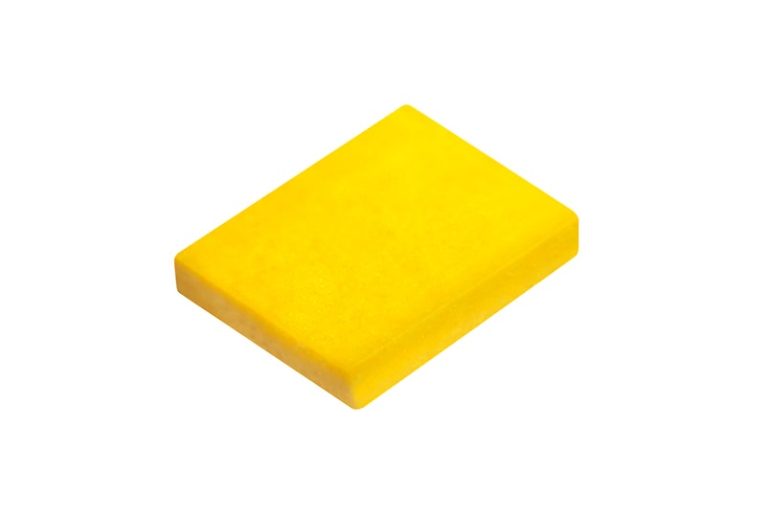

LM101A Led Chip is a part of SAMSUNG Middle Power LED Series opens up a new world of lighting design with its high output and small form factors. The application of this chip is at Indoor Lighting like Spot Light, LED Bulbs, Ambient Light & Ceiling Light. Keep in mind that LM102A is not used in downlight.
- Greater freedom of design with compact package size
- High degree of reliability with plastic-free structure
- Low thermal resistance

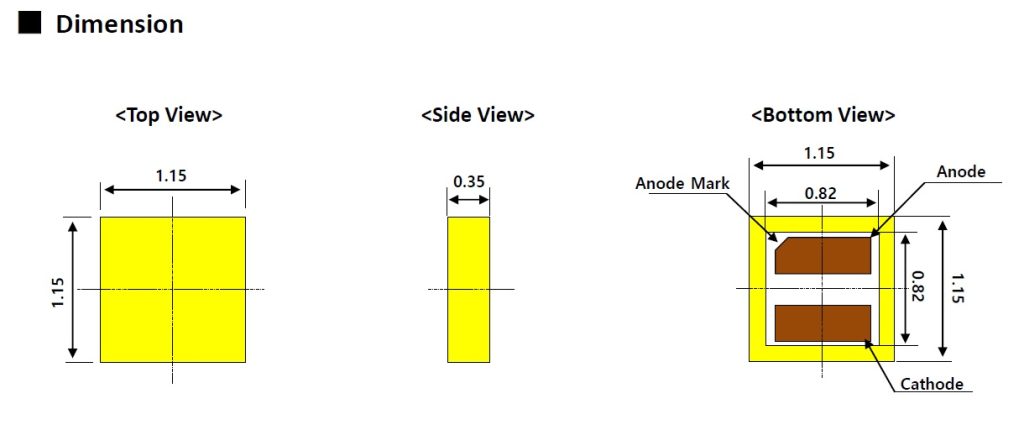

- High efficiency providing optimized solution • Compact footprint (1.15 x 1.15 mm)
Wattage
0
Forward Voltage
0
Luminous Flux (lm) @150 mA
0
Luminous Efficacy lm /W @150 mA
0
(Condition) mA, 85°C
0
| CCT | Part Number | BIN | MIN | MAX |
| 3000K | SCP7VT78HPL1V☆S06E | SD SE SF | 55 59 63 | 59 63 67 |
| 3500K | SCP7UT78HPL1U☆S06E | SD SE SF | 55 59 63 | 59 63 67 |
| 4000K | SCP7TT78HPL1T☆S06E | SE SF SG | 59 63 67 | 63 67 71 |
| 5000K | SCP7RT78HPL1R☆S06E | SE SF SG | 59 63 67 | 63 67 71 |
| 5700K | SCP7QT78HPL1Q☆S06E | SE SF SG | 59 63 67 | 63 67 71 |
| 6500K | SCP7PT78HPL1P☆S06E | SE SF SG | 59 63 67 | 63 67 71 |
| CCT | Part Number | BIN | MIN | MAX |
| 2200K | SCP8YT78HPL1Y☆S06E | SZ SA SB | 39 43 47 | 43 47 51 |
| 2700K | SCP8WT78HPL1W☆S06E | SB SC SD | 47 51 55 | 51 55 59 |
| 3000K | SCP8VT78HPL1V☆S06E | SC SD SE | 51 55 59 | 55 59 63 |
| 3500K | SCP8UT78HPL1U☆S06E | SC SD SE | 51 55 59 | 55 59 63 |
| 4000K | SCP8TT78HPL1T☆S06E | SD SE SF | 55 59 63 | 59 63 67 |
| 5000K | SCP8RT78HPL1R☆S06E | SD SE SF | 55 59 63 | 59 63 67 |
| 5700K | SCP8QT78HPL1Q☆S06E | SC SD SE | 51 55 59 | 55 59 63 |
| 6500K | SCP8PT78HPL1P☆S06E | SC SD SE | 51 55 59 | 55 59 |
| CCT | Part Number | BIN | MIN | MAX |
| 2700K | SCP9WT78HPL1W☆S06E | SY SZ SA | 35 39 43 | 39 43 47 |
| 3000K | SCP9VT78HPL1V☆S06E | SY SZ SA | 35 39 43 | 39 43 47 |
| 3500K | SCP9UT78HPL1U☆S06E | SZ SA SB | 39 43 47 | 43 47 51 |
| 4000K | SCP9TT78HPL1T☆S06E | SZ SA SB | 39 43 47 | 43 47 51 |
