LM102A Led Chip is a part of SAMSUNG Middle Power LED Series with application at Indoor Lighting like Downlight, LED Bulbs, Ambient Light & Ceiling Light. Keep in mind that LM102A is not used in spot light.
- Greater freedom of design with compact package size
- High degree of reliability with plastic-free structure
- Low thermal resistance

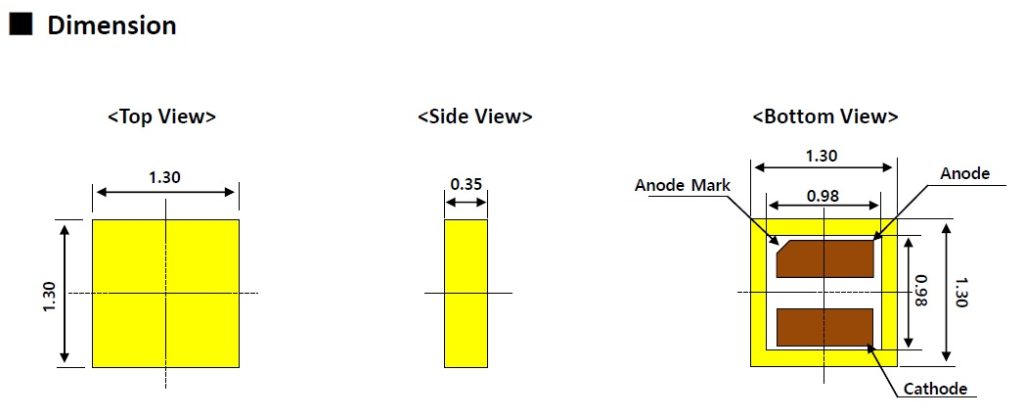

- High efficiency providing optimized solution • Compact footprint (1.30 x 1.30 mm)
Wattage
0
Forward Voltage
0
Luminous Flux
0
Luminous Efficacy lm /W @140
0
(Condition) mA, 85°C
0
| CCT | Part Number | BIN | MIN | MAX |
| 3000K | SCS7VT93HPL2V☆S03F | SD SE | 103 111 | 111 119 |
| 3500K | SCS7UT93HPL2U☆S03F | SD SE | 103 111 | 111 119 |
| 4000K | SCS7TT93HPL2T☆S03F | SE SF | 111 119 | 119 127 |
| 5000K | SCS7RT93HPL2R☆S03F | SE SF | 111 119 | 119 127 |
| 5700K | SCS7QT93HPL2Q☆S03F | SE SF | 111 119 | 119 127 |
| 6500K | SCS7PT93HPL2P☆S03F | SE SF | 111 119 | 119 127 |
| CCT | Part Number | BIN | MIN | MAX |
| 2700K | SCS8WT93HPL2W☆S03F | SC SD | 95 103 | 103 111 |
| 3000K | SCS8VT93HPL2V☆S03F | SC SD | 95 103 | 103 111 |
| 3500K | SCS8UT93HPL2U☆S03F | SD SE | 103 111 | 111 119 |
| 4000K | SCS8TT93HPL2T☆S03F | SD SE | 103 111 | 111 119 |
| 5000K | SCS8RT93HPL2R☆S03F | SE SF | 111 119 | 119 127 |
| 5700K | SCS8QT93HPL2Q☆S03F | SD SE | 103 111 | 111 119 |
| 6500K | SCS8PT93HPL2P☆S03F | SD SE | 103 111 | 111 119 |
| CCT | Part Number | BIN | MIN | MAX |
| 2700K | SCS9WT93HPL2W☆S03F | SA SB | 79 87 | 87 95 |
| 3000K | SCS9VT93HPL2V☆S03F | SA SB | 79 87 | 87 95 |
| 3500K | SCS9UT93HPL2U☆S03F | SA SB | 79 87 | 87 95 |
