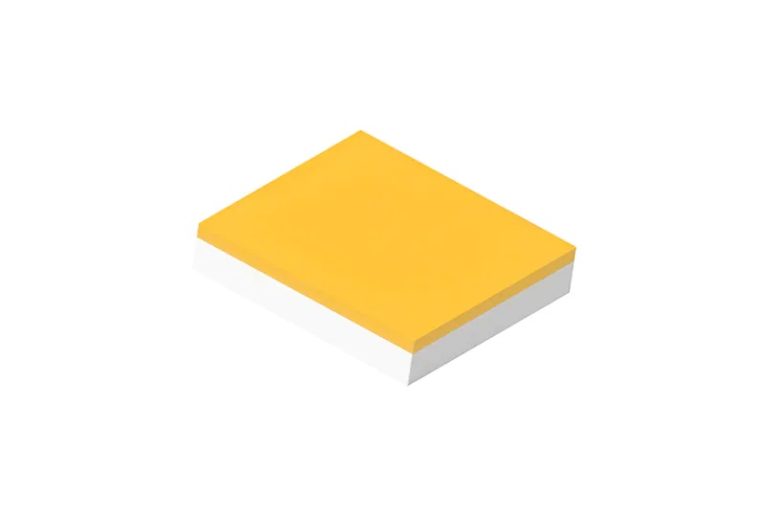

LM151B Led Chip is a part of SAMSUNG High Power LED Series with application at Indoor Lighting like Downlight, Spotlights LED Bulbs, MAR/PAR & Low Bay. For out door lighting it can be used in street light, tunnel light, parking lot light & security light.
The industrial application of this light is in Highbay & Lowbay and the consumer application is for Torch.
- Utilizes SSAMSUNG TF Chip Technology.
- Suitable for use in indoor & outdoor lighting.
- Operates at maximum current to o.7A

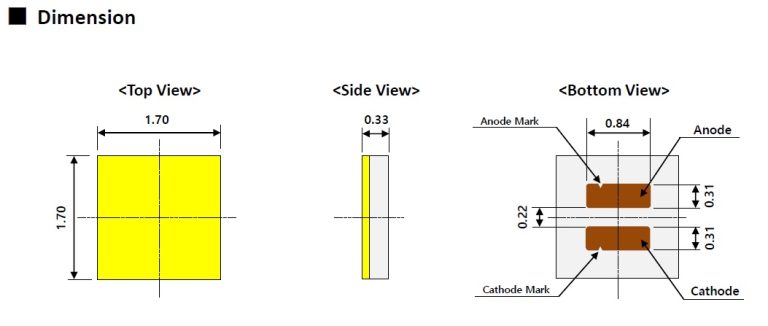

- Compact footprint (1.70 x 1.70 mm)
Wattage @ 0.7 A
0
Forward Voltage
0
Luminous Flux @ 350 mA
0
Luminous Efficacy lm /W @161
0
| CCT | Part Number | BIN | MIN | MAX |
| 2700K | SCP7WT93KEL1W◇J36E | J1 K1 M1 | 120 130 140 | 130 140 150 |
| 3000K | SCP7VT93KEL1V◇K36E | K1 M1 N1 | 130 140 150 | 140 150 160 |
| 3500K | SCP7UT93KEL1U◇M36E | M1 N1 P1 | 140 150 160 | 150 160 170 |
| 4000K | SCP7TT93KEL1T◇N36E | N1 P1 Q1 | 150 160 170 | 160 170 180 |
| 5000K | SCP7RT93KEL1R◇N36E | N1 P1 Q1 | 150 160 170 | 160 170 180 |
| 5700K | SCP7QT93KEL1Q◇M36E | M1 N1 P1 | 140 150 160 | 150 160 170 |
| 6500K | SCP7PT93KEL1P◇M36E | M1 N1 P1 | 140 150 160 | 150 160 170 |
| CCT | Part Number | BIN | MIN | MAX |
| 2700K | SCP8WT93KEL1W◇J36E | J1 K1 M1 | 120 130 140 | 130 140 150 |
| 3000K | SCP8VT93KEL1V◇J36E | J1 K1 M1 | 120 130 140 | 130 140 150 |
| 3500K | SCP8UT93KEL1U◇K36E | K1 M1 N1 | 130 140 150 | 140 150 160 |
| 4000K | SCP8TT93KEL1T◇K36E | K1 M1 N1 | 130 140 150 | 140 150 160 |
| 5000K | SCP8RT93KEL1R◇M36E | M1 N1 P1 | 140 150 160 | 150 160 170 |
| 5700K | SCP8QT93KEL1Q◇K36E | K1 M1 N1 | 130 140 150 | 140 150 160 |
| 6500K | SCP8PT93KEL1P◇K36E | K1 M1 N1 | 130 140 150 | 140 150 160 |
| CCT | Part Number | BIN | MIN | MAX |
| 2700K | SCP9WT93KEL1W◇G36E | G1 H1 J1 | 100 110 120 | 110 120 130 |
| 3000K | SCP9VT93KEL1V◇G36E | G1 H1 J1 | 100 110 120 | 110 120 130 |
| 3500K | SCP9UT93KEL1U◇G36E | G1 H1 J1 | 100 110 120 | 110 120 130 |
| 4000K | SCP9TT93KEL1T◇H36E | H1 J1 K1 | 110 120 130 | 120 130 140 |
| 5000K | SCP9RT93KEL1R◇H36E | H1 J1 K1 | 110 120 130 | 120 130 140 |
